In modern precision mold manufacturing and custom precision component machining, many manufacturers face tough processing challenges when working with hardened steel. After heat treatment, hardened steel reaches high hardness, making conventional milling, turning and grinding difficult, with risks of tool chipping, dimensional deviation and surface damage. Wire EDM (Electrical Discharge Machining), also known as wire-cut electrical discharge machining, is a non-contact thermal ablation processing technology specially designed for high-hardness, high-precision workpieces. It has become an indispensable processing method for hardened steel precision parts, widely adopted in mold, automotive, aerospace and medical equipment industries. This article explains the core principle of Wire EDM, its unique advantages for hardened steel workpieces and applicable industrial scenarios.

1. Core Working Principle of Wire EDM

Different from traditional cutting processes that remove material by mechanical extrusion and cutting, Wire EDM uses continuous moving thin metal wire as the electrode. Under the effect of pulse power supply, spark discharge occurs between the wire electrode and the conductive workpiece. Instant high temperature generated by electric spark melts and vaporizes local metal material to realize workpiece forming.

There is no direct contact force between the electrode wire and the workpiece during the whole processing cycle. This core feature eliminates mechanical cutting stress and tool extrusion deformation, which is the fundamental reason why Wire EDM can process high-hardness hardened steel precision parts. The processing track is controlled by CNC system, which supports complex two-dimensional and three-dimensional special-shaped contours, narrow slits, sharp corners and tiny holes that are hard to realize by conventional cutting.

2. Unique Advantages of Wire EDM for Hardened Steel Precision Parts

The biggest pain point of processing hardened steel with traditional cutting tools is tool wear. Most cutting tools cannot cut steel after quenching and tempering when hardness exceeds HRC45. Wire EDM breaks through this limitation, since its material removal relies on electric spark ablation instead of mechanical cutting. Processing feasibility will not be affected by workpiece hardness. Whether it is HRC48–HRC52 mold steel or HRC55–HRC62 high-hardness alloy steel, stable forming can be completed.

Second, Wire EDM achieves excellent contour accuracy and sharp corner retention. In mold manufacturing, sharp corner clearances, narrow grooves and thin ribs are common structural requirements. Traditional grinding often causes corner collapse and dimensional distortion due to grinding wheel contact pressure. Wire EDM can maintain clear sharp edges, ensuring the assembly accuracy of precision mold inserts and hardened steel matching parts.

In addition, non-contact processing effectively avoids workpiece deformation. Hardened steel workpieces are prone to internal residual stress after heat treatment. Conventional heavy cutting will release stress and cause bending or twisting. With no mechanical force applied, Wire EDM greatly reduces the risk of stress deformation, which is critical for thin-walled hardened steel precision components.

3. Key Process Limitations & Suitable Application Scenarios

To ensure technical authenticity, we need to clarify the applicable boundary of Wire EDM. This process is only suitable for conductive metal materials, and processing efficiency is generally lower than high-speed milling. It is not recommended for large batch simple contour roughing, and it is more suitable for finishing and complex contour processing.

Typical application scenarios include: hardened mold inserts, precision punch and die sets, aerospace hardened structural parts, medical device metal components, and custom thin-wall precision spacers. For customers requiring high tolerance control of ±0.002mm~±0.005mm for hardened steel parts, Wire EDM is the preferred finishing process.

4. Quality Control Points in Wire EDM Machining

To stabilize the final workpiece quality, standardized process control must be implemented. Operators need to confirm workpiece internal stress state before processing. For severely stressed hardened steel, stress relief treatment is recommended in advance to prevent deformation after wire cutting. Selection of electrode wire, pulse parameter adjustment and working fluid filtration will affect surface finish. For parts with high surface requirements, multi-cut finishing is adopted to reduce the recast layer on the workpiece surface.

Conclusion

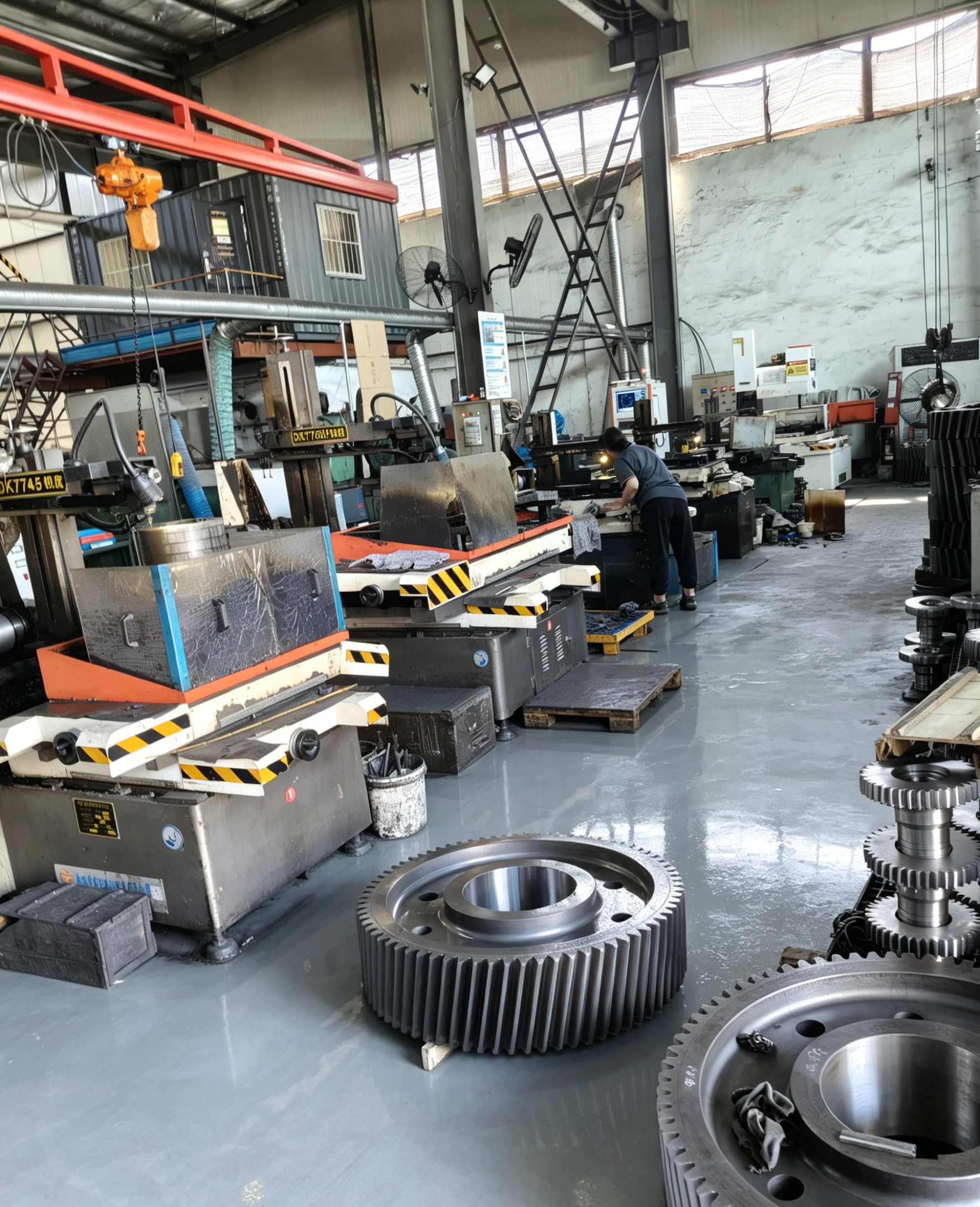

As a mature non-contact precision processing technology, Wire EDM perfectly solves the processing bottleneck of hardened steel precision parts that cannot be completed by conventional cutting processes. It brings reliable dimensional stability, sharp contour retention and low deformation risk for mold and precision machinery manufacturers. Our workshop supports custom Wire EDM processing services for hardened steel workpieces, with complete quality inspection procedures to meet strict tolerance requirements of global customers. In the future, we will continue to optimize multi-cut finishing processes to provide higher-quality precision processing solutions for the manufacturing industry.
