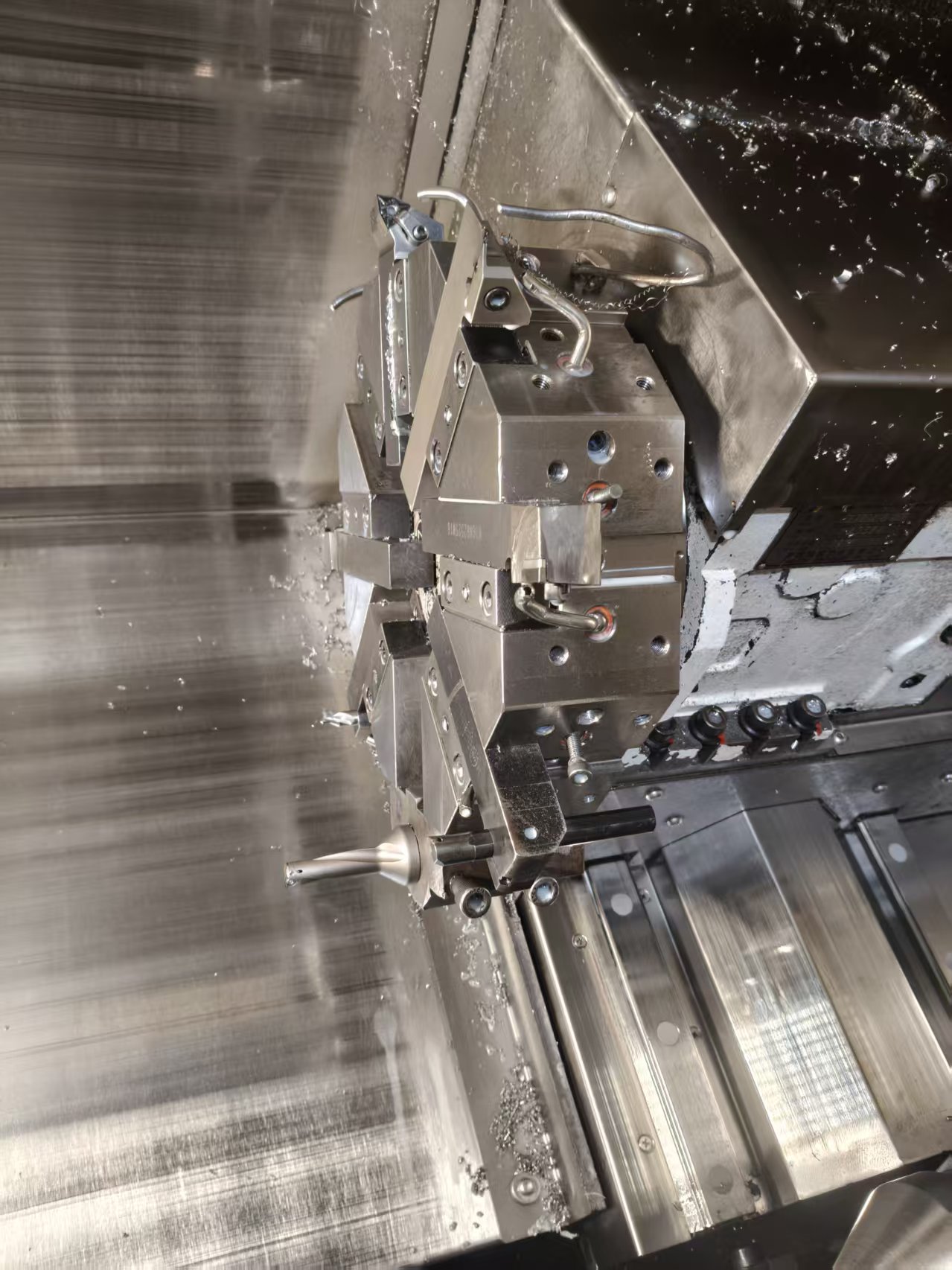

Slant Rail Lathe Tool Post for Heavy-Duty Turning | High-Rigidity Lathe Slide Component

In professional CNC lathe machining and heavy-duty turning mass production, the rigidity, stability and feeding accuracy of the lathe sliding system directly determine workpiece roundness, surface smoothness and batch dimensional consistency. Ordinary flat rail tool posts often suffer from insufficient lateral rigidity, easy vibration and poor heavy-load resistance during inclined turning and deep cutting processes. To solve the long-standing pain points of vibration deviation and rapid precision attenuation in traditional lathe sliding structures, our factory optimizes and upgrades the slant rail lathe tool post, a professional heavy-duty lathe slide component tailored for high-load metal turning, hard alloy processing and long-hour continuous production.

1. Structural Advantages of Slant Rail Lathe Tool Post

Different from conventional flat rail sliding structures, the slant rail tool post adopts optimized inclined rail geometric design, which forms a natural triangular force-bearing structure between the tool post body and the lathe bed. This unique mechanical structure greatly improves lateral rigidity, anti-tilting performance and heavy-load impact resistance.

In hard steel turning, deep groove cutting and intermittent cutting scenarios, flat rail slides are prone to micro-vibration and tool chatter, resulting in tool mark ripples and poor surface finish. The slant rail structure effectively restrains lateral displacement and cutting vibration, maintaining ultra-stable feeding track under strong cutting force. The overall body is integrally cast and precisely processed, with high structural density, low deformation rate and long-term geometric accuracy stability.

2. Core Performance Improvements for Turning Processing

The upgraded slant rail lathe tool post comprehensively optimizes three core machining indicators: precision, stability and durability.

First, it delivers excellent repeat positioning accuracy. The precision-fitted slant rail contact surface reduces assembly gaps and sliding resistance fluctuation, ensuring consistent feeding stroke in repeated batch turning. It effectively avoids dimensional deviation of batch shaft parts and sleeve parts.

Second, it greatly enhances heavy-load processing capability. The inclined bearing design disperses cutting pressure evenly, making it suitable for stainless steel turning, alloy steel roughing and high-depth metal removal processing that ordinary tool posts cannot stably complete.

Third, the anti-wear performance is significantly improved. After overall quenching and precision grinding treatment, the rail surface features high hardness, low friction coefficient and strong chip resistance. It can adapt to long-hour continuous workshop operation and reduce precision attenuation caused by long-term mechanical wear.

3. Material & Industrial Heat Treatment Standards

To meet the rigorous requirements of industrial heavy-duty production, our lathe tool post is made of high-grade cast iron and high-quality structural steel, with standardized overall tempering and local high-frequency quenching technology. This process improves overall structural toughness, surface hardness and fatigue resistance, effectively solving common defects such as rail abrasion, surface depression and structural loosening of ordinary lathe sliding components.

After precision manual scraping and matching calibration, the rail contact rate reaches industrial high standard, ensuring smooth and jitter-free reciprocating movement. The surface is treated with anti-rust oil seal and oxidation resistance treatment, adapting to harsh workshop environments with oil pollution, iron scraps and humidity.

4. Wide Compatibility & Industrial Application Scenarios

This slant rail tool post has strong universal compatibility and can be widely applied to CNC lathes, ordinary lathes, automatic turning equipment and modified industrial turning machines. It is suitable for mass processing of shaft parts, flange parts, bushing parts, hydraulic accessories and automation mechanical components.

Whether it is high-precision finishing requiring mirror surface effect or heavy-load roughing with large cutting volume, the slant rail sliding system can maintain stable operating state. It is an essential core upgrade accessory for factories pursuing high-yield, high-precision and high-stability turning production.

5. Production Value & Customer Benefit Analysis

Stable lathe sliding components are the key to reducing defective rates and improving production efficiency. The high-rigidity slant rail tool post effectively suppresses cutting vibration, improves workpiece surface quality, reduces tool loss frequency, and lowers equipment debugging costs in batch production.

For long-term mass turning enterprises, upgrading slant rail structure can significantly improve batch dimensional consistency, shorten processing debugging time, reduce tool wear cost and equipment maintenance cost, and comprehensively enhance factory production benefits and product market competitiveness.

Conclusion

As a high-performance CNC lathe slide component, the slant rail tool post perfectly solves the vibration and insufficient rigidity problems of traditional flat rail structures in heavy-duty turning. With high rigidity, stable precision, strong wear resistance and wide compatibility, it provides reliable structural guarantee for high-precision and high-load metal turning production. Our factory insists on refined processing and strict quality inspection for every machine tool accessory, providing global customers with durable, high-precision and cost-effective lathe tool post solutions for long-term stable industrial production.
