Modular Fixture Solution for Mass Production
In high-volume CNC batch machining, traditional custom integral fixtures face obvious limitations: long development cycle, poor reusability and high replacement cost when product specifications change. Modular fixture system is assembled by standardized reusable basic modules, positioning pins, clamping components, support blocks and adjustment parts. It can quickly build positioning and clamping platforms for different workpieces, and has gradually become the preferred fixture solution for modern flexible mass production workshops. This article analyzes the advantages of modular fixtures, core composition, application value and applicable production scenarios for global manufacturing buyers.

1. Definition and Composition of Modular Fixture System

A standard modular fixture consists of a base plate with regular grid holes, adjustable support modules, positioning locating pins, quick clamping units, pressure plates and fine adjustment gaskets. All modules adopt standardized hole spacing and connection specifications. Unlike integral welding or one-piece cast custom fixtures, there is no permanent connection between modules. After completing one batch production task, all components can be disassembled, cleaned and stored for repeated use in new product clamping.

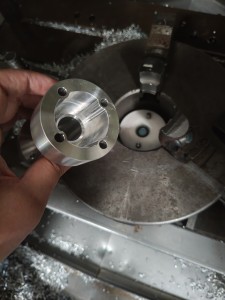

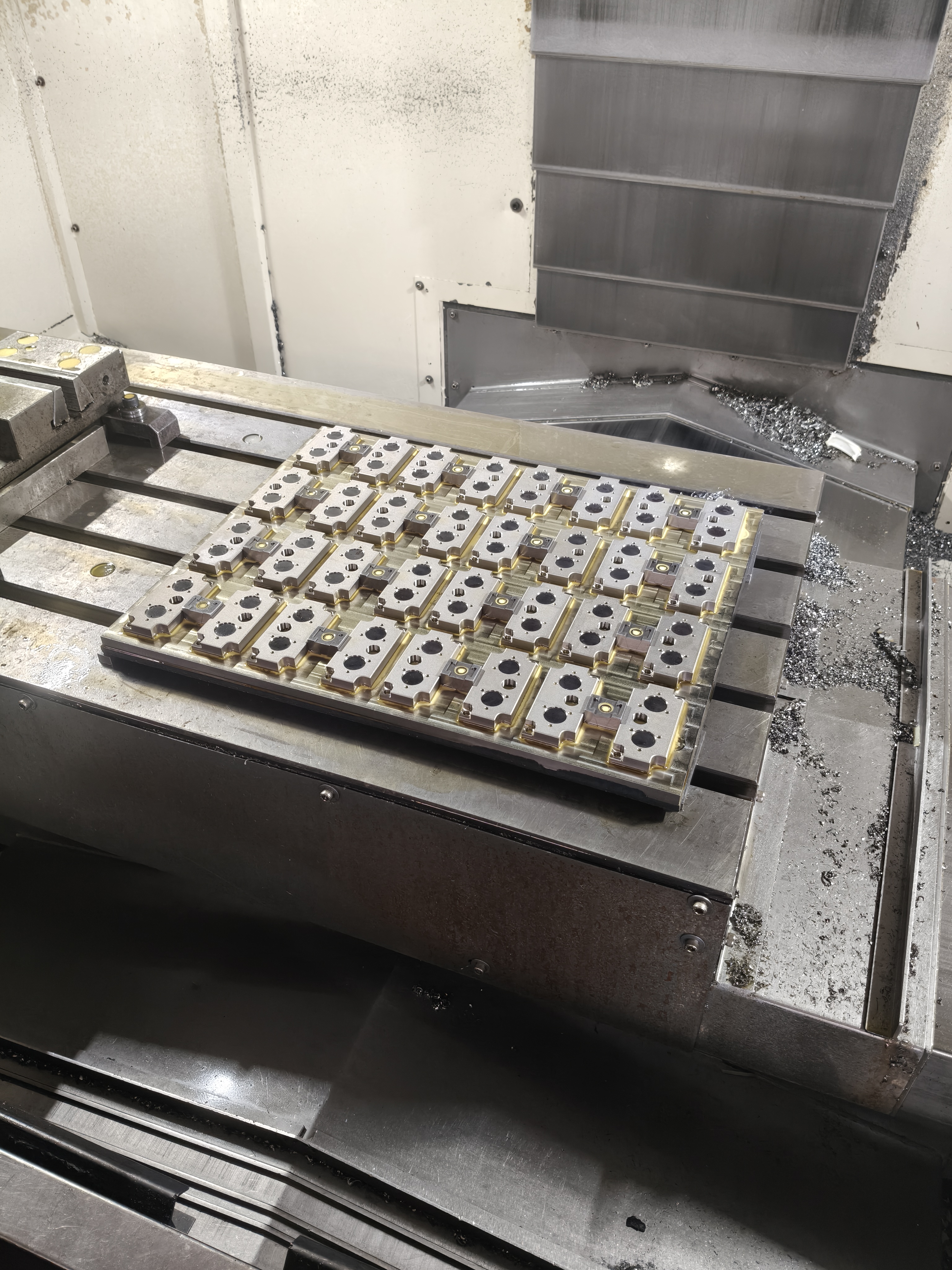

The base plate can be installed on vertical machining centers, horizontal machining centers and multi-station machining equipment. Multiple workpieces can be clamped on a single base plate to realize multi-piece synchronous processing, which greatly improves the utilization rate of machine tools in mass production.

2. Core Advantages of Modular Fixtures for Batch Machining

The first prominent advantage is shortening the fixture development cycle. For traditional custom fixtures, it takes days or weeks for drawing design, processing, assembly and trial clamping. The modular scheme only needs to select and assemble existing standard modules, and the clamping setup time can be reduced by more than 60% for new product trial production.

Second, it reduces long-term production costs. When product models are updated, integral fixtures are often scrapped directly, causing waste. Standard modular fixture components can be reused repeatedly, and only a small number of special positioning accessories need to be supplemented for new workpieces. For enterprises with multiple product models and frequent order switching, the comprehensive fixture investment will be significantly reduced.

Third, it realizes consistent clamping accuracy. The grid positioning base plate and standard locating pins ensure stable repeated positioning accuracy. In long-term continuous batch production, manual clamping deviation is reduced, which helps guarantee the dimensional consistency of batch workpieces. Multi-station synchronous clamping also effectively reduces idle waiting time of CNC machine tools and improves overall production efficiency.

3. Process Planning Points for Modular Fixture Application

Modular fixtures are not suitable for all processing scenarios. For ultra-heavy cutting with huge cutting force, special reinforced customized clamping schemes still need to be adopted. Before assembling the fixture, engineers need to complete workpiece process analysis, confirm the positioning reference, avoid clamping interference with cutting tools, and calculate clamping force to prevent workpiece displacement during processing.

For thin-wall and easily deformed workpieces, flexible support modules are equipped to reduce clamping deformation. Operators should regularly check the wear of positioning pins and base plate holes, clean iron scraps in grid holes every day, and maintain the long-term stability of positioning accuracy. Our workshop provides complete fixture assembly drawings and operation specifications after scheme delivery to guide customers to use the system correctly.

4. Application Value for Flexible Mass Production

At present, many precision parts factories are transforming from single-variety mass production to multi-variety flexible batch production. Modular fixture solutions perfectly adapt to this production trend. It helps manufacturers respond faster to customer sample orders and small-batch trial production, shorten delivery cycles and enhance market competitiveness. Whether it is automotive hardware, automation accessories or communication structural parts, modular clamping can bring obvious efficiency improvement.

Conclusion

As a flexible and reusable fixture solution, modular fixtures effectively solve the pain points of long cycle, high cost and poor reusability of traditional custom fixtures in mass production. Our team can provide one-stop services including fixture scheme design, module assembly, on-site commissioning and technical training according to customers’ workpiece drawings and production plans. We support standardized modular fixture customization for vertical machining centers and multi-station processing equipment, helping global manufacturers optimize clamping efficiency and control production costs in batch machining.
