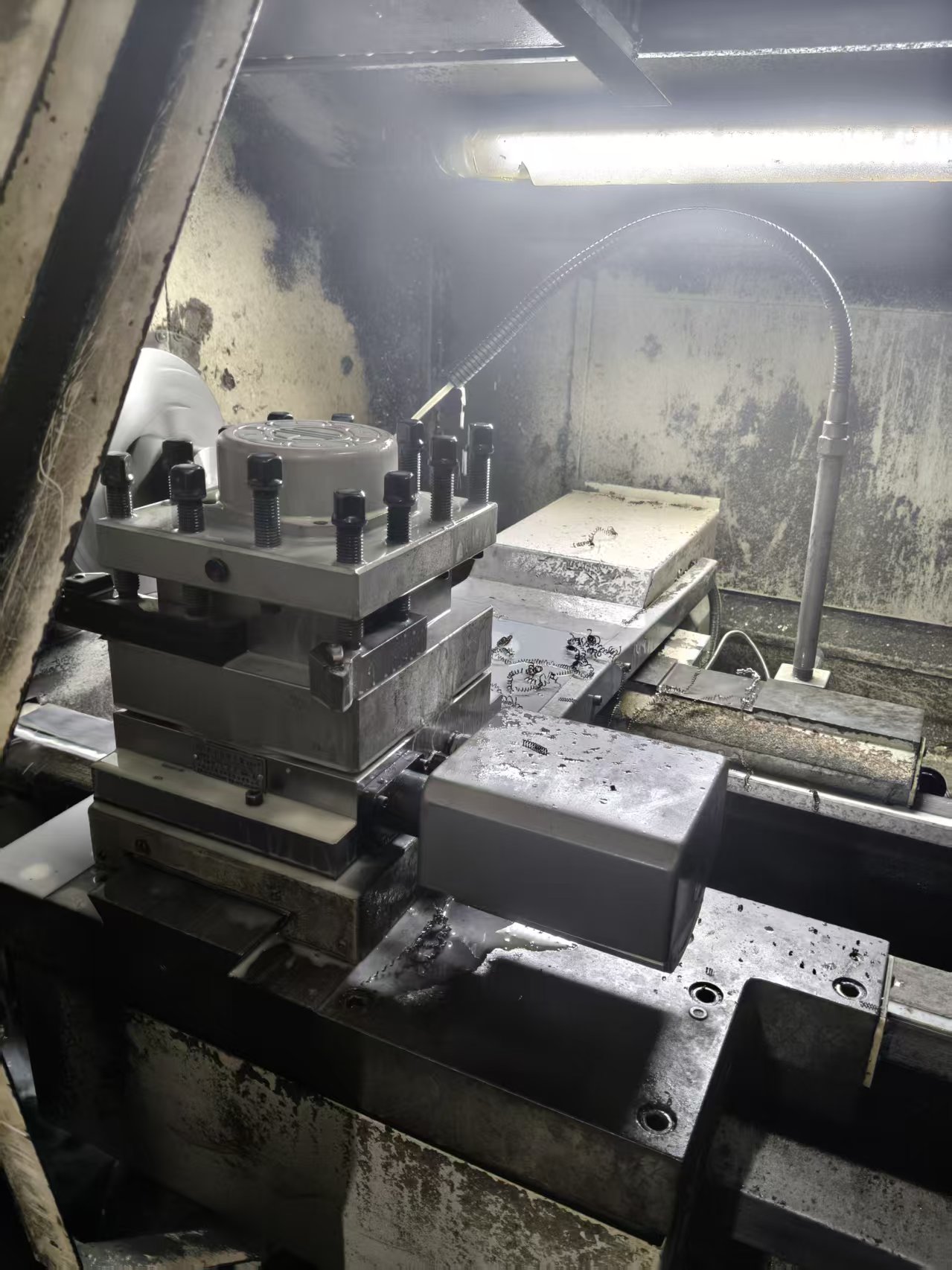

High-Precision Flat Rail Square Platform | Heavy-Duty CNC Machining Slide Table

In modern precision manufacturing and industrial automation industries, stable and accurate linear motion components are essential for improving overall equipment performance. As global CNC machining and metalworking standards continue to rise, traditional ordinary slide tables can no longer meet the requirements of heavy-duty processing, long-hour continuous operation, and high-precision batch production. Many conventional work platforms suffer from vibration, positioning deviation, fast wear, and accuracy attenuation after long-term use, resulting in unstable workpiece quality and low production efficiency. To solve these common industrial pain points, our company officially launches the upgraded Flat Rail Square Platform, a high-rigidity machine tool slide table designed for professional industrial processing scenarios.

1. Integrated Square Structure Delivers Ultra-High Structural Rigidity

Different from ordinary cantilever platforms and single linear guide structures with unbalanced stress, our flat rail square platform adopts a fully enclosed integrated square symmetrical structure. This optimized mechanical design realizes balanced force bearing in all directions, greatly improving the overall structural rigidity and anti-deformation performance of the equipment.

During milling processing, heavy-load cutting, and frequent workpiece clamping, traditional sliding tables easily produce micro-shakes and lateral displacement, causing tool chatter and poor workpiece surface finish. In contrast, our square frame structure effectively suppresses mechanical vibration and positioning errors. The large flat tabletop provides stable bearing capacity for fixture assembly, workpiece installation, and tooling positioning, making it ideal for both precision inspection equipment and heavy metal machining applications.

2. Premium Flat Rail Technology Ensures Stable Sliding & Long-Term Precision

This product adopts professional industrial flat rail technology, with all contact surfaces processed through precision grinding and manual scraping procedures. The advanced craftsmanship creates an ultra-smooth sliding surface with extremely low friction coefficient, realizing uniform, stable, and jitter-free linear motion.

Unlike ball linear guides that rely on rolling contact and easily generate internal gaps after wear, the flat rail sliding structure uses large-area surface contact to disperse pressure evenly. This feature greatly reduces wear speed and maintains consistent positioning accuracy during long-term cyclic operation. In batch machining and high-frequency start-stop working modes, the platform keeps stable feeding accuracy without stagnation or offset. Furthermore, the flat rail design offers excellent dust resistance and chip resistance, adapting perfectly to harsh workshop environments with iron scraps, oil stains, and industrial dust, which is critical for long-term machine tool stability.

3. High-Strength Steel Material & Heat Treatment for Superior Wear Resistance

To adapt to long-term industrial heavy-load operation, our square slide table is manufactured with high-quality thickened carbon steel and processed through overall tempering and partial high-frequency quenching treatment. This standard industrial heat treatment significantly enhances the equipment’s hardness, toughness, impact resistance, and wear resistance.

After multi-layer anti-rust, anti-oxidation, and surface strengthening treatment, the platform maintains stable mechanical performance under vibration, humid conditions, and continuous heavy load. It effectively avoids common defects of ordinary cast iron platforms, such as easy deformation, low hardness, and rapid aging. With outstanding durability and stable precision retention, this product greatly reduces equipment maintenance costs, replacement frequency, and production downtime loss for manufacturing factories.

4. High Universality & Flexible Installation for Wide Automation Equipment Applications

Our upgraded flat rail square platform features standardized overall dimensions and universal mounting hole positions, providing excellent compatibility for various industrial devices. It is widely applicable to vertical machining centers, CNC lathes, milling machines, precision testing instruments, automated assembly lines, mold processing machines, and other automation equipment.

The reasonable reserved gaps and adjustable assembly structure support fast installation, simple debugging, and accurate position calibration. It can be used for new equipment assembly as well as old workshop equipment upgrading and renovation. With strong scene adaptability, the platform effectively shortens production line transformation cycles and improves overall operational efficiency for modern intelligent manufacturing workshops.

5. Great Industrial Value for Batch Production Quality Improvement

In modern precision processing industries, the stability of sliding platforms directly determines product yield and batch consistency. Unstable motion accuracy often leads to inconsistent workpiece dimensions, poor surface smoothness, repeated rework, and low batch production efficiency.

Equipped with our high-precision flat rail square platform, processing equipment achieves more uniform feeding strokes, stronger operational stability, and higher repetitive positioning accuracy. It effectively reduces machining errors, lowers defective rates, and ensures excellent product consistency in mass production. For metal processing factories, mold manufacturing workshops, and automated production enterprises, this high-performance machine tool slide component significantly upgrades production quality and enhances market competitiveness.

Conclusion

With strict industrial manufacturing standards, our company focuses on the research and optimization of precision mechanical components for CNC and automation industries. The newly upgraded flat rail square platform integrates high rigidity, stable precision, superior wear resistance, and wide compatibility, fully meeting the high-standard demands of modern CNC machining and intelligent manufacturing.

In the future, we will continue to iterate our industrial slide table products, optimize structural design and processing technology, and provide global customers with reliable, high-cost-performance industrial motion solutions, helping more manufacturing enterprises achieve stable, efficient, and high-precision production upgrades.
